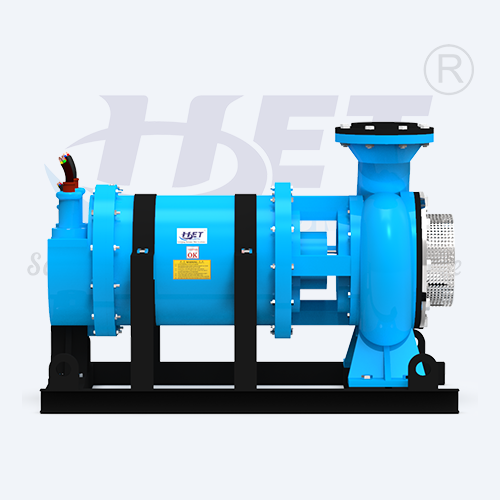

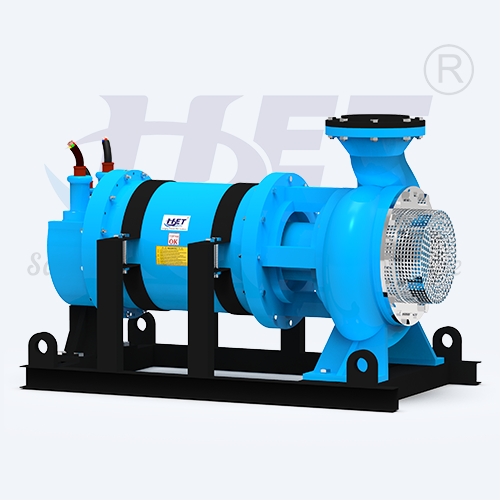

The "SC" Series represents a centrifugal submersible pump featuring a single shaft design. On the suction side, it includes a compatible strainer for efficiently handling clear raw water while consuming minimal power. Installation options include both vertical and horizontal configurations, with the horizontal option featuring a single base frame suitable for both portable and fixed placements. Additionally, the pump is equipped with moisture and temperature sensors to provide protection.
Performance Technical Data :
| Discharge Range | - | Up to 2000 M%/Hr |
| Head Range | - | Up to 150 VItr. |
| Power Rating | - | 2.0 to 250.0 HP |
| Speed | - | 960, 1450, 2900 гр |
| Supply | - | 3Ф, 50Hz/60Hz, A.C. |
| Solids Size | - | Up to 40mm |
Special feature /Advantage :
Material Specifications :
| Standard Material | - | Cast Iron / Sg. Cast Iron / S.S.316 / S.S. 304 |
| Special Material | - | NI-HARD / HI-CROME / CAST-ALLOY / CD4MCUN / Customize Options Available |
