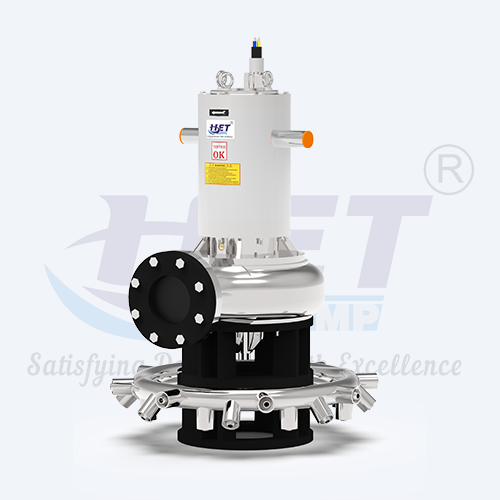

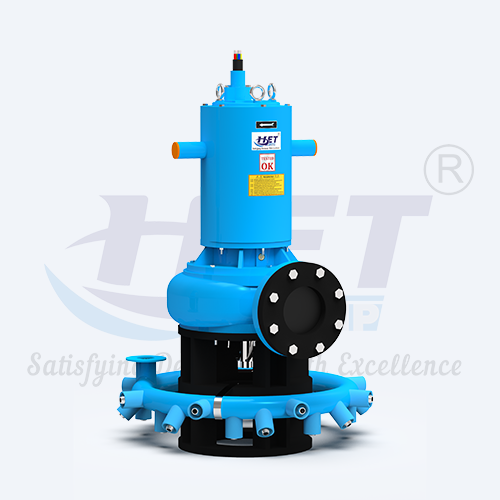

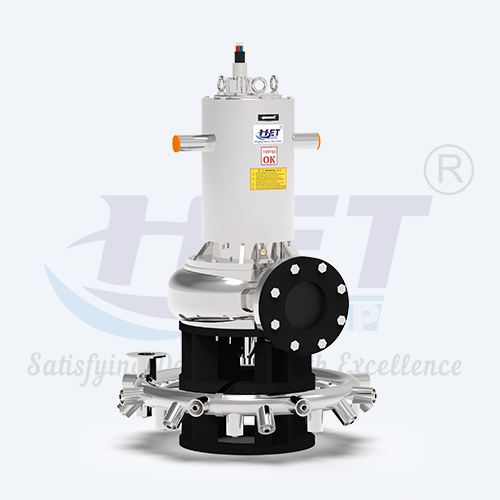

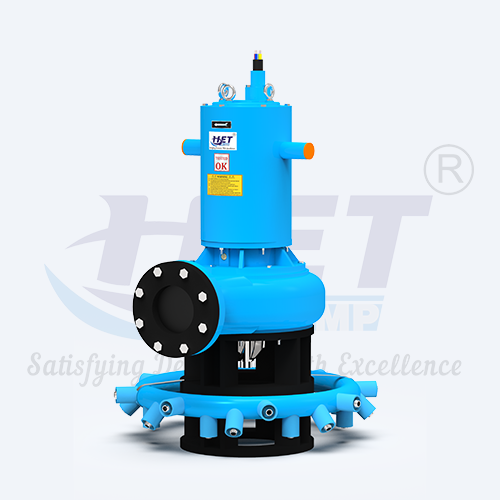

The "HET" presents its unique "SASEW" Series, a Single Stage Submersible Slurry Application Pump. This remarkable pump is equipped with an Agitator and Aerator System, transforming it into a Non-Clog Slurry Pump capable of handling hefty slurry solids up to 40 mm in size, with a capacity to manage heavy slurry up to 2.0 kg/m3.
Its versatility makes it ideal for highly abrasive and corrosive heavy sludge and slurry applications across various industries, including industrial waste removal. An essential feature is the non-pressurized mechanical seal assembly, effectively preventing hydraulic pressure from affecting the rotating components, ensuring both the seal and motor remain unharmed by abrasive slurry. The pump casing boasts a regular single-volute design, while the inclusion of an inducer, temperature sensors, and a cooling jacket further enhances its performance and adaptability. Choose the "HET" "SASEW" Series for dependable performance, innovative design, and resilience in challenging industrial environments, ideal for catalog inclusion.
Performance Technical Data :
| Head | - | Up to 65 mtr. |
| Discharge | - | Up to 1000 m3/hr. |
| Soild Size | - | max. Up to 40 mm |
| Speed | - | 1450 / 960 / 750 rpm |
| Delivery Size | - | 100 MM / 150 MM / 200 MM / 250 MM / 300 MM / 350 MM |
| Delivery Type | - | Flange type |
| Motor Rating | - | 10 to 200 hp |
| Supply | - | 3Ø, 50Hz/60hz, A.C. |
Special feature /Advantage :
Material Specifications :
| Motor Part | - | Cast Iron / SG Iron |
| Impeller | - | Stainless Steel / Ni-Hard |
| Agitator / Inducer | - | Stainless Steel |
| Casing | - | Cast Iron |
| cooling jacket | - | Stainless Steel |
| Mech. Seal | - | Non Pressurize Tc /Tc |
| Rubber Part | - | Nitrile Rubber / Viton |
| Fastner | - | Stainless Steel |
| Cable | - | PVC Double sheathed with 10 mtr. Length |
| Motor Winding | - | F/H Class Copper Wound |
NOTE : ** Also these pump are available as per customer require material of construction like S.S. 304 /S.S.316/NI HARD/ HI CHROME or any other , We also provided if any specific part with special material of construciton as per application**
