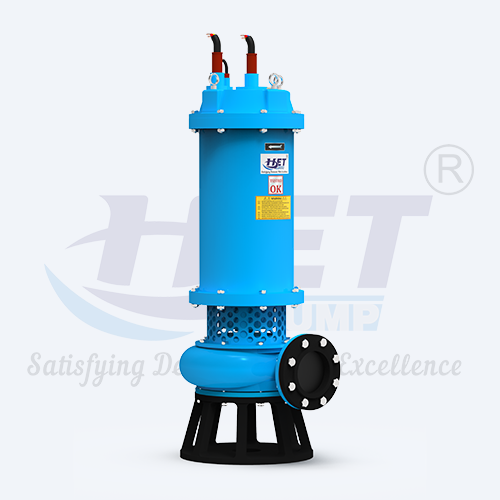

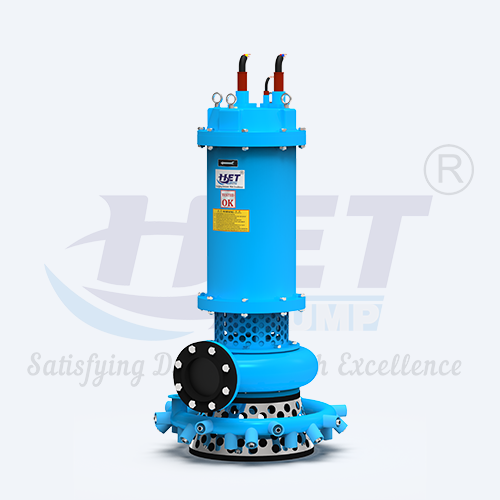

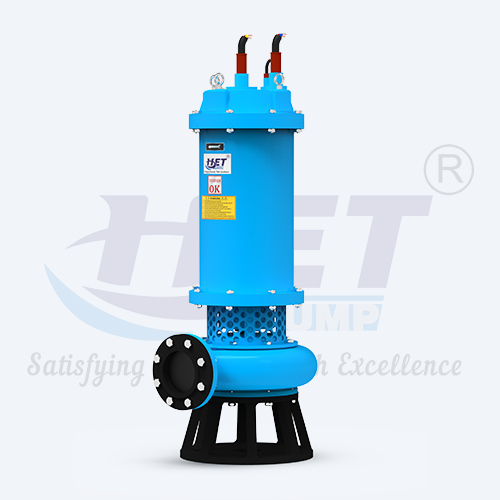

The "HET" presents its unique "NSEW" Series, a Single Stage Submersible Slurry Application Pump. This remarkable pump is equipped with an Agitator and Aerator System, transforming it into a Non-Clog Slurry Pump capable of handling hefty slurry solids up to 40 mm in size, with a capacity to manage heavy slurry up to 2.0 kg/m3.
With a double mechanical seal and one non-pressurized seal, it adeptly handles heavy slurry with a density of up to 2.0 kg/m3, ideal for abrasive, corrosive heavy sludge in diverse industries, including industrial waste removal. The non-pressurized mechanical seal assembly reduces hydraulic pressure on rotating parts, enhancing durability. The single-volute pump casing ensures efficiency, while an inducer, temperature sensors, and a cooling jacket add versatility. In demanding environments, choose the "HET" Submersible Slurry/Sewage Pump for optimal performance and unwavering reliability.
Performance Technical Data :
| Head | - | Up to 130 mtr. |
| Discharge | - | Up to 1500 m3/hr. |
| Soild Size | - | max. Up to 125 mm |
| Speed | - | 1450 / 960 rpm |
| Delivery Size | - | 100 MM / 150 MM / 200 MM / 250 MM / 300 MM / 350 MM |
| Delivery Type | - | Flange type |
| Motor Rating | - | 12.5 to 200 hp |
| Supply | - | 3Ø, 50Hz/60hz, A.C. |
Special feature /Advantage :
Material Specifications :
| Motor Part | - | Cast Iron / SG Iron |
| Impeller | - | Stainless Steel / Ni-Hard |
| Agitator / Inducer | - | Stainless Steel |
| Casing | - | Cast Iron |
| cooling jacket | - | Stainless Steel |
| Mech. Seal | - | Non Pressurize Tc /Tc |
| Rubber Part | - | Nitrile Rubber / Viton |
| Fastner | - | Stainless Steel |
| Cable | - | PVC Double sheathed with 10 mtr. Length |
| Motor Winding | - | F/H Class Copper Wound |
NOTE : **Also these pump are available as per customer require material of construction like S.S. 304 /S.S.316/NI HARD/ HI CHROME or any other , We also provided if any specific part with special material of construciton as per application**
