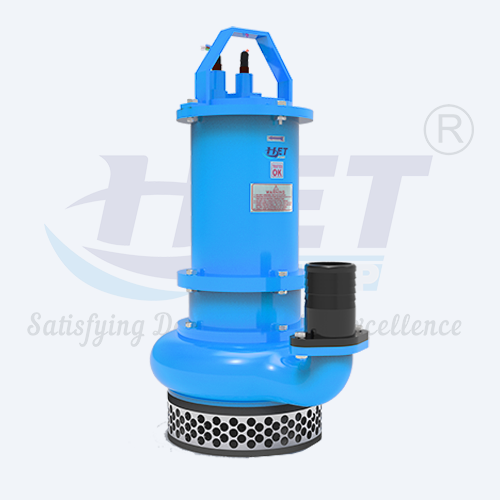

The "HET" make "2PDSEW" Series pump are desiged in single stage, vertical submerisble by A.C. siquirrel cage induction "F" class motor . These pump are equipped with double mechanical seal and excellence performance capacitiy with roboust design.
The "HET" make “2PDSEW” series is designed to meet dewatering demands during floods, stormwater, sewer clogging, and drainage overflow. These pumps are heavy-duty industrial strength but still light and highly portable with ease in the handle. These pumps are ideal for pumping water with a solid content up to 35mm. this pump comes with plug and play concept with external capacitor provision.
Performance Technical Data :
| Head | - | up to 40 Mtr. |
| Discharge | - | up to 150 m3/hr |
| Soild Size | - | max. up to 50 mm |
| SPEED | - | 2900 / 1450 rpm |
| Delivery Size | - | 50 mm/ 65 mm/ 75 mm/ 100 mm |
| Delivery Type | - | Flange type ( Hose / Threded optional ) |
| Motor Rating | - | 0.5 to 7.5 |
| Supply | - | 1Ø/3Ø, 50Hz/60hz, A.C./(1Ø up to 2.2 kw ) |
Special feature /Advantage :
Material Specifications :
| Motor Body | - | Cast Iron / Stainless Steel |
| Other Part | - | Cast Iron |
| Impeller | - | Stainless Steel |
| Casing | - | Cast Iron |
| Cable | - | PVC Double sheathed with 5 mtr. Length |
| Mech. Seal | - | Sic / Sic Taflon/ Carbon |
| Hardware | - | Stainless Steel |
| Rubber Part | - | Nitrile Rubber |
NOTE : ** Also these pump are available as per customer require material of construction like S.S. 304 /S.S.316 or any other , We also provided if any specific part with special material of construciton as per application**
