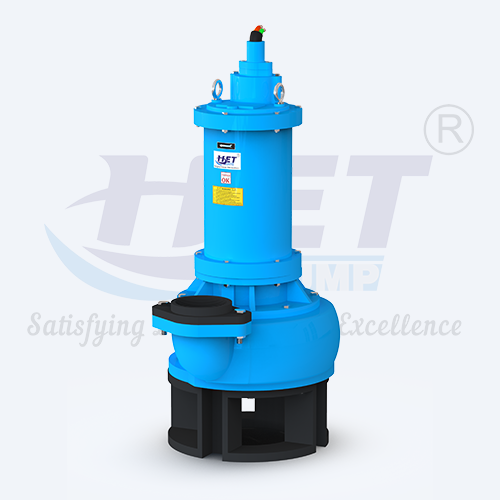

The "HET" make “MSEW” series pumps are designed single shaft design in a single stage, non-clog type, submersible design with dual mechanical seals, open/semi-open/close, vortex, single vane, two vane, and multi-vane impellers and it comes with moisture, temperature sensors. A.C. siquirrel cage induction "F" class motor . These pump excellence performance capacitiy with roboust design.
The "HET" make “MSEW” series pumps are Specially designed to use in Manhole Applications For Municipal & Nagapalikas & Hospitals,. This design is typically used for primary and secondary treated sewage. these pumps offer high reliability against clogging and possibility to clean objects stuck inside the pump easily due to its specially design impellers. The pumps can handle liquids with solids starting from 20 to 100 mm in size. The most common applications include Manhole Application Where Sump Size is Limited 460 mm (18 '') & 600 mm (24'') in sewage treatment and include dewatering applications in Slurry Water , Drain water , water treatment, wastewater treatment & industrial effluents. With high efficiency submersible motors, with the option to run on VFD and full featured pump monitoring system, the pumps offer highest flexibility and reliability.
Performance Technical Data :
Head | - | Up to 35 mtr. |
Discharge | - | Up to 360 m3/hr. |
Soild Size | - | max. Up to 100 mm |
SPEED | - | 2900 / 1450 / 960 rpm |
Delivery Size | - | 100 mm / 150 mm |
Delivery Type | - | Hose type |
Motor Rating | - | 3 to 35 HP |
Supply | - | 3Ø, 50Hz/60hz, A.C. |
Special feature /Advantage :
Material Specifications :
Motor Body | - | Cast Iron |
Other Part | - | Cast Iron |
Impeller | - | Stainless Steel |
Casing | - | Cast Iron |
Cable | - | PVC Double sheathed with 10 mtr. Length |
Mech. Seal | - | Sic / Sic & Tc /Tc |
Hardware | - | Stainless Steel |
Rubber Part | - | Nitrile Rubber |
NOTE : **Also these pump are available as per customer require material of construction like S.S. 304 /S.S.316/NI HARD/ HI CHROME or any other , We also provided if any specific part with special material of construciton as per applicatio**
